Fuse box layout

[Skin]

Anyone know or have a diagram of the interior fuse box layout. Not anywhere in the owner manuals I have. In tried looking online, don't seem to find anything that matches the RHO interior fuse board. Need to know what's what !
Any help is appreciated.



[gram10]

Anyone know or have a diagram of the interior fuse box layout. Not anywhere in the owner manuals I have. In tried looking online, don't seem to find anything that matches the RHO interior fuse board. Need to know what's what !
Any help is appreciated.

the owners manual has a list in it, if you use the zoom on your phone camera you can see the fuse box has the fuse slots numbered. They're super small and hard to see



[Joe86]

Check under the fuse cover.. might be there .



[Anarxi]

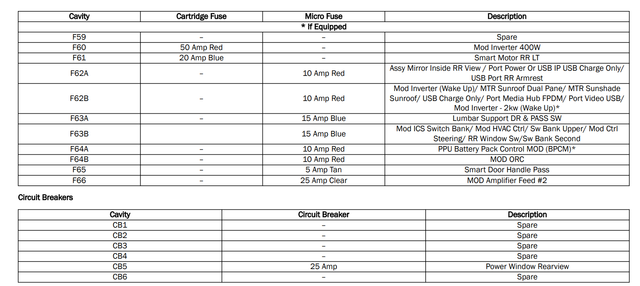

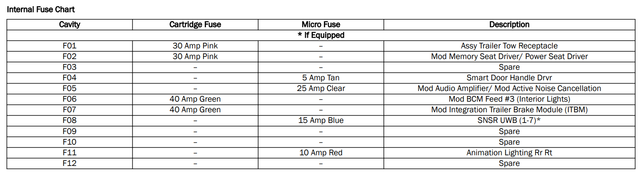

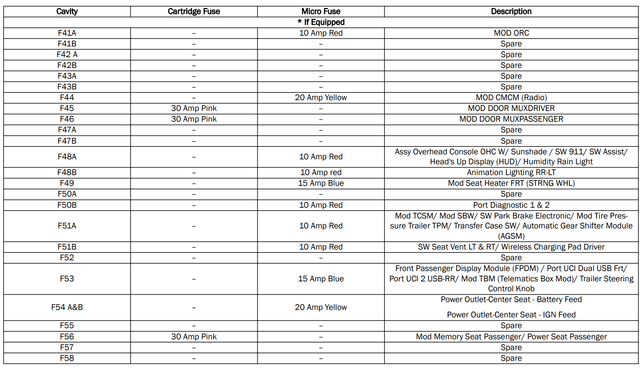

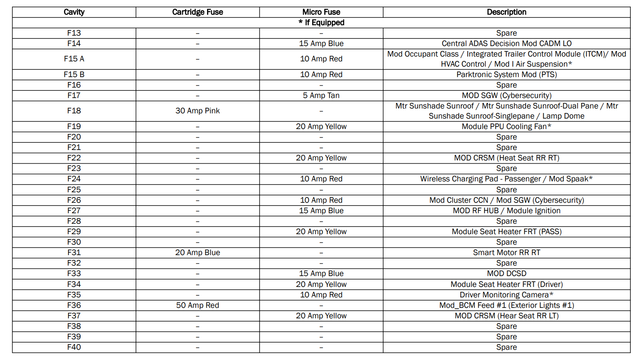

i gochu, i was just wiring my dashcam last weekend



[Skin]

i gochu, i was just wiring my dashcam last weekend

Thanks



[Wandering_PanPan]

Trying to wire up my XL80 Ditch lights
Check the Aux main on N1 connected.
I don't have power to interior aux switch they do not light up when I press them.
Is there an interior fuse?



[Mikey Swift]

Aux wires are right side of engine bay near batteries, black taped under the fuse box. Looking for Pink wires.



[Wandering_PanPan]

Figured it out last night.
I checked all fuses nothing blown, n1 had power.
Still no power to switches inside. Decided to pulled head unit and found aux switch plug was not fully seated/ clip in.
Not sure if Service someone disconnected, factory install error, or came loose driving.
But if your aux switch buttons don't light up check the connector.
